Ver. 2, short-circuit protection.

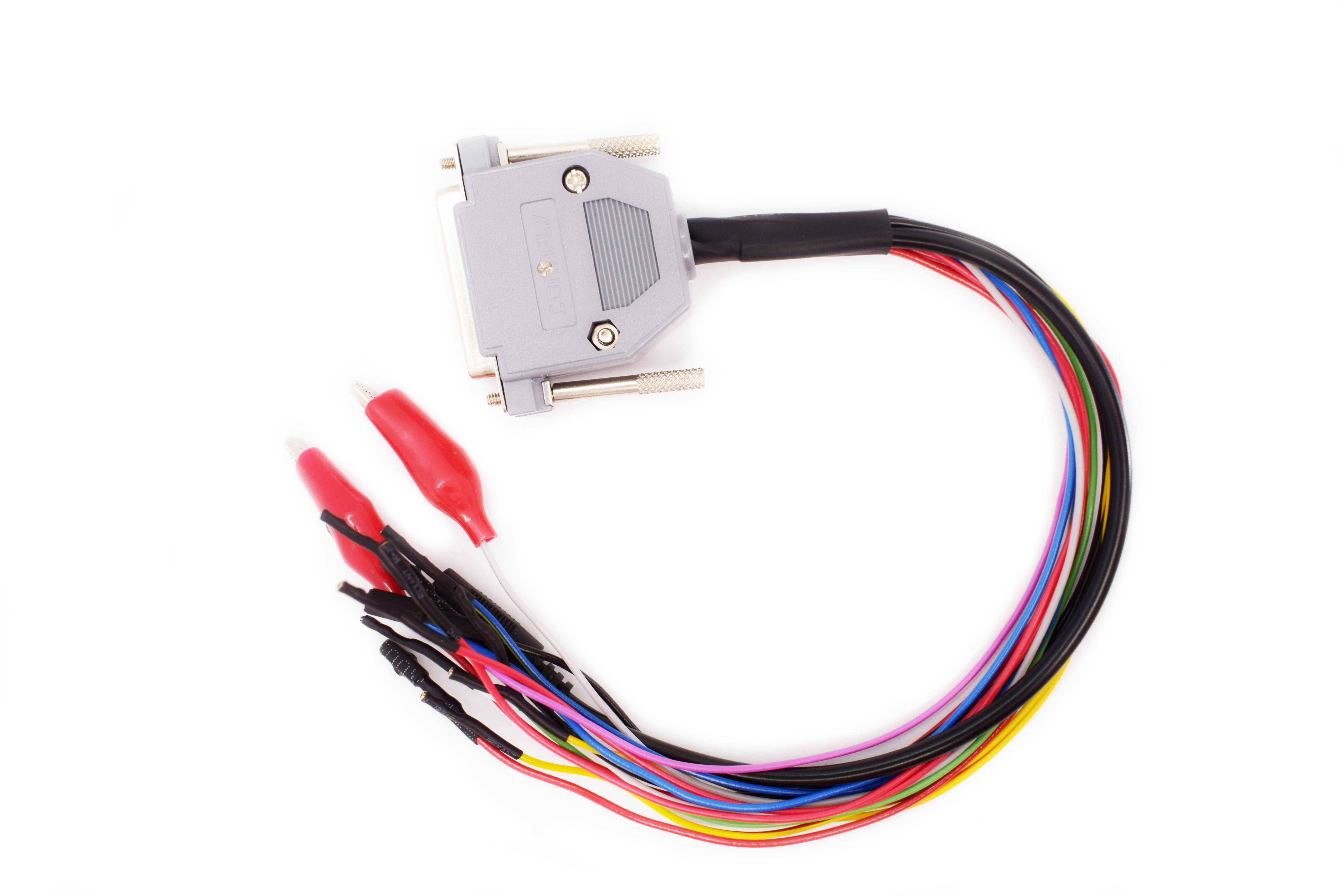

The wire colouring of the connection cable
Red — +12V
Blue-yellow — GPT1 (5v amplitude output)
Black — GND
Red-yellow — GPT2 (5v amplitude output)
Red-white — GPT1 -12b (bufferless, up to 12V)
Black-white — GPT2 -12b (bufferless, up to 12V)
White — CAN H
Violet — Vpp
Green — CAN L
Blue — CNF1 510 Ohm
Yellow — K-Line
Grey — boot 1 kOhm

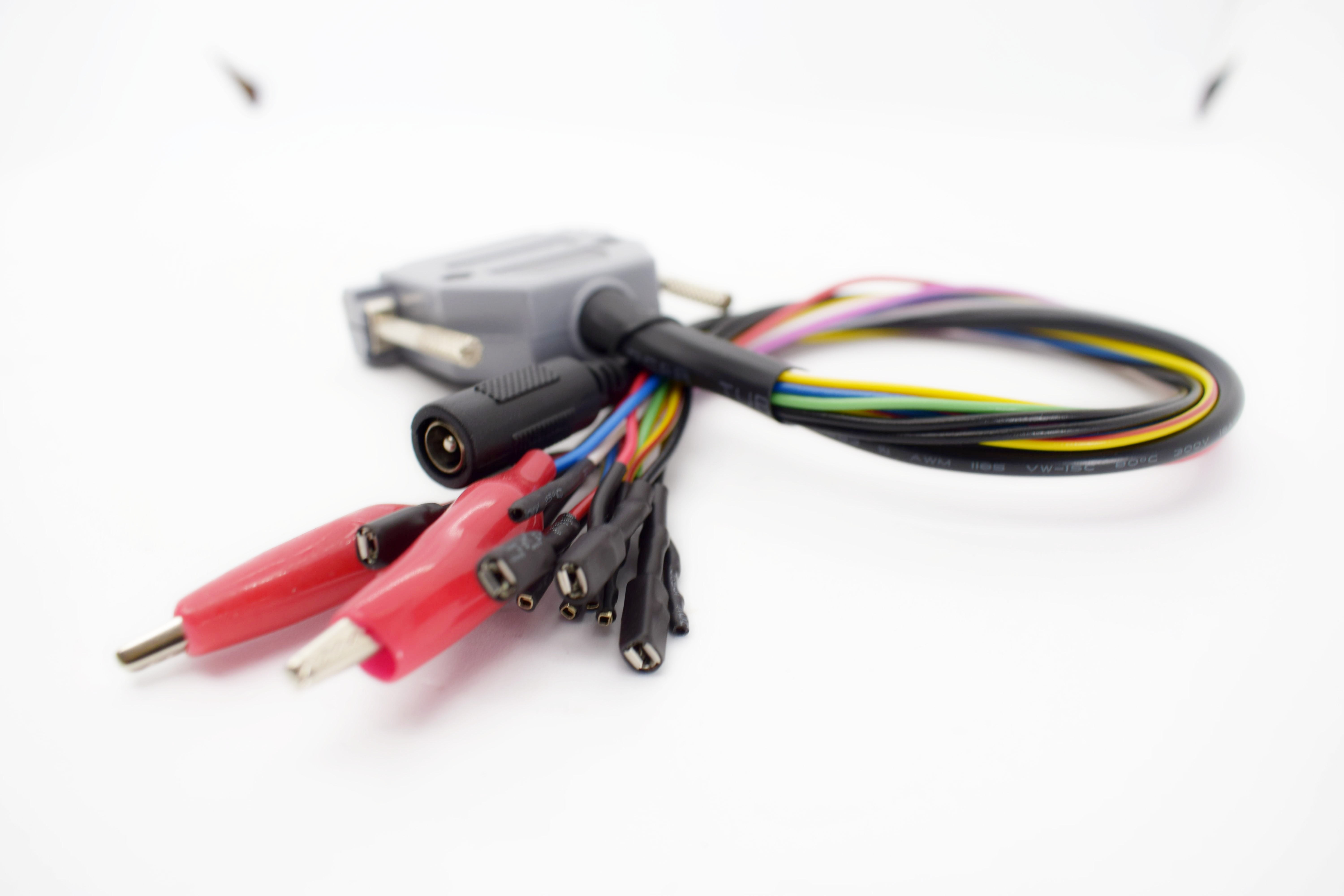

External power 12V (5, А mах) Jack
Gallery (3)
